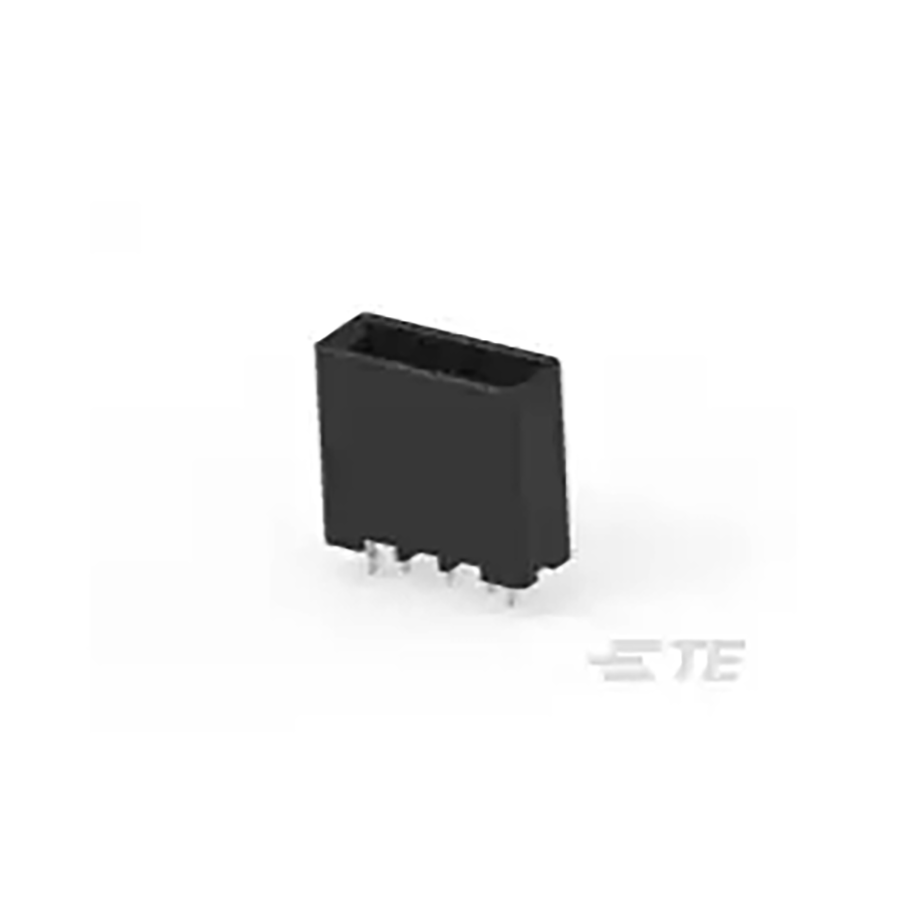

1-178136-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1-178136-2
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Plug, Tab Number of Positions:3 Pitch:5.08 mm
| Parameter | Value |
|---|---|
| Length | 24.16 mm |
| Width | 9.3472 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 21.59 mm |
| Packaging | Tube |
| Voltage Rating | 600 V |
| Depth | 9.35 mm |
| Halogen Free | Halogen Free |
| RoHS | Compliant |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 5.08 mm |
| Number of Terminals | 3 |
| Current Rating | 15 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Vertical |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Header, Plug, Tab |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing | 7.62 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Connector System | Wire-to-Board |
| Contact Style | Straight |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 8 A |
| Housing Color | Black |
| PCB Thickness | 1.6002 mm |
| Tail Length | 3.8 mm |
| VDE Tested | No |
| Preloaded | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
| Mating Retention | With |
| Mating Alignment | With |
| Termination Post Length | 3.81 mm |
Stock: 34
Distributors
pcbx
pcbxUnit Price$1.37645
Ext.Price$1.37645
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.37645 | $1.37645 |
| 10 | $1.15526 | $11.55260 |
| 25 | $1.03555 | $25.88875 |
| 50 | $0.92824 | $46.41200 |
| 100 | $0.83207 | $83.20700 |
| 300 | $0.80128 | $240.38400 |
| 500 | $0.77164 | $385.82000 |
| 1000 | $0.74292 | $742.92000 |
